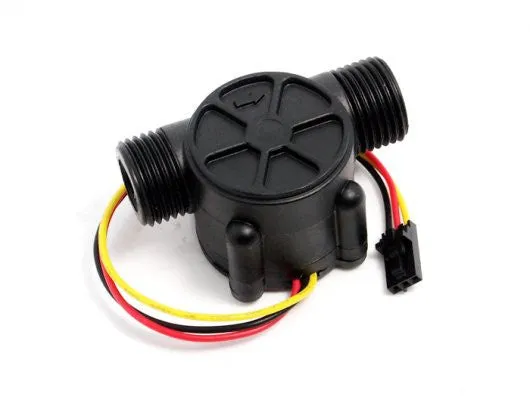

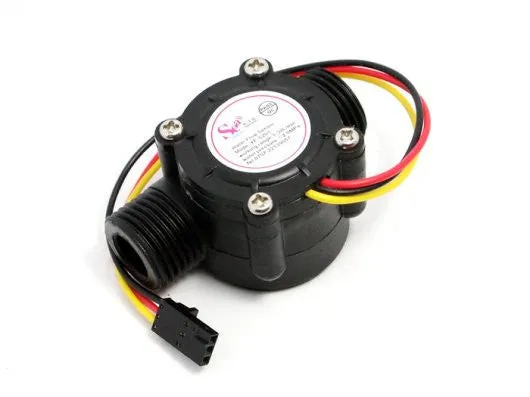

Our G1/2" Water Flow Sensor is composed of a plastic valve body, a water rotor, and hall-effect sensor. The water rotor rotates with differing flow rates and in turn, signals the hall-effect sensor, providing pulse output. Suitable for water dispensers and coffee machines, we present a full range of water flow sensors in various sizes to suit your needs.
Features
- Compact, Easy to Install
- High Sealing Performance
- High Quality Hall Effect Sensor
- RoHS Compliant
Specifications
- Mini. Wokring Voltage: DC 4.5V
- Max. Working Current: 15mA (DC 5V)
- Working Voltage: DC 5V~24V
- Flow Rate Range: 1~30L/min
- Load Capacity: ≤10mA (DC 5V)
- Operating Temperature: ≤80℃
- Liquid Temperature: ≤120℃
- Operating Humidity: 35%～90%RH
- Water Pressure: ≤1.75MPa
- Storage Temperature: -25～ 80℃
- Storage Humidity: 25%～95%RH
Documentations
- Mechanic Dimensions(Coming soon)
