Clean up the mess of hoses by introducing an injection and/or liquid outlet manifold!
Eight Column Manifolds fit our standard R4 Racks
Designed with 3/8 SS304 Compression Hardline, 3/8 Compression fittings & valves with inlet and outlet connections 3/8 Male JIC 37 Degree Flare Fittings.
Upgrade your old extractor, or build a new custom setup using our manifolds today!
Dimensions
| Manifold Type | Dimensions |

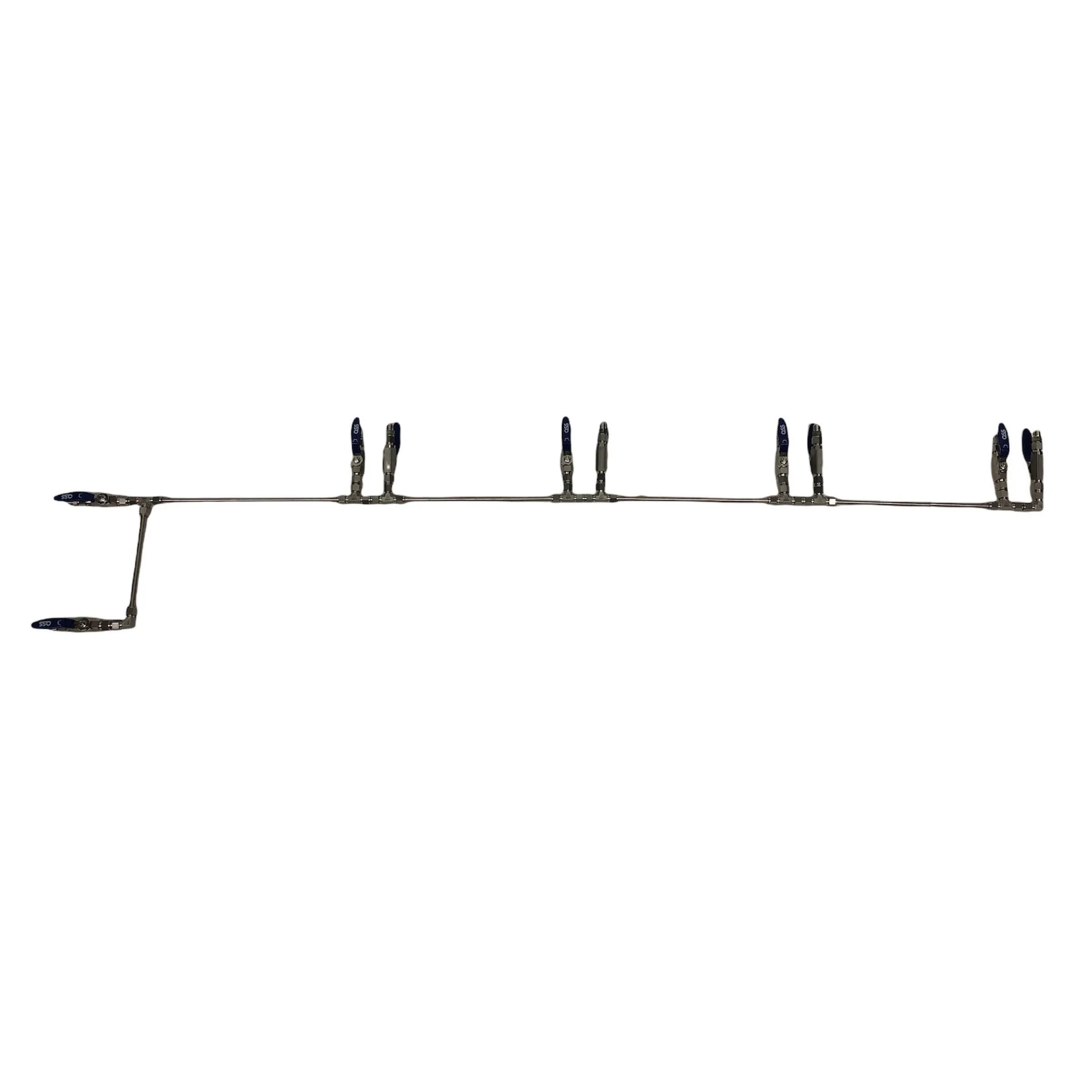

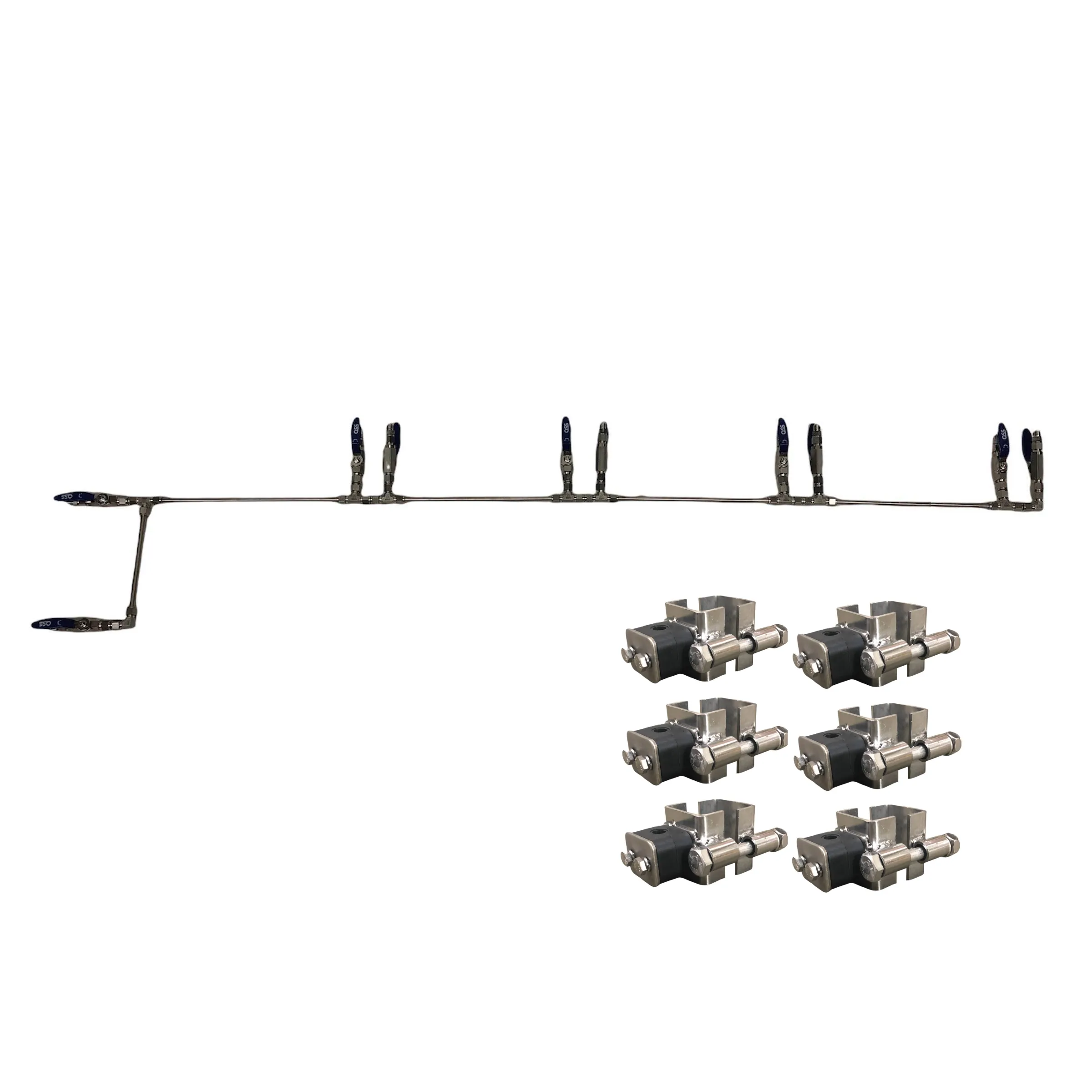

| Eight Column Manifold - Injection |
67.5"x16.25"x2" |

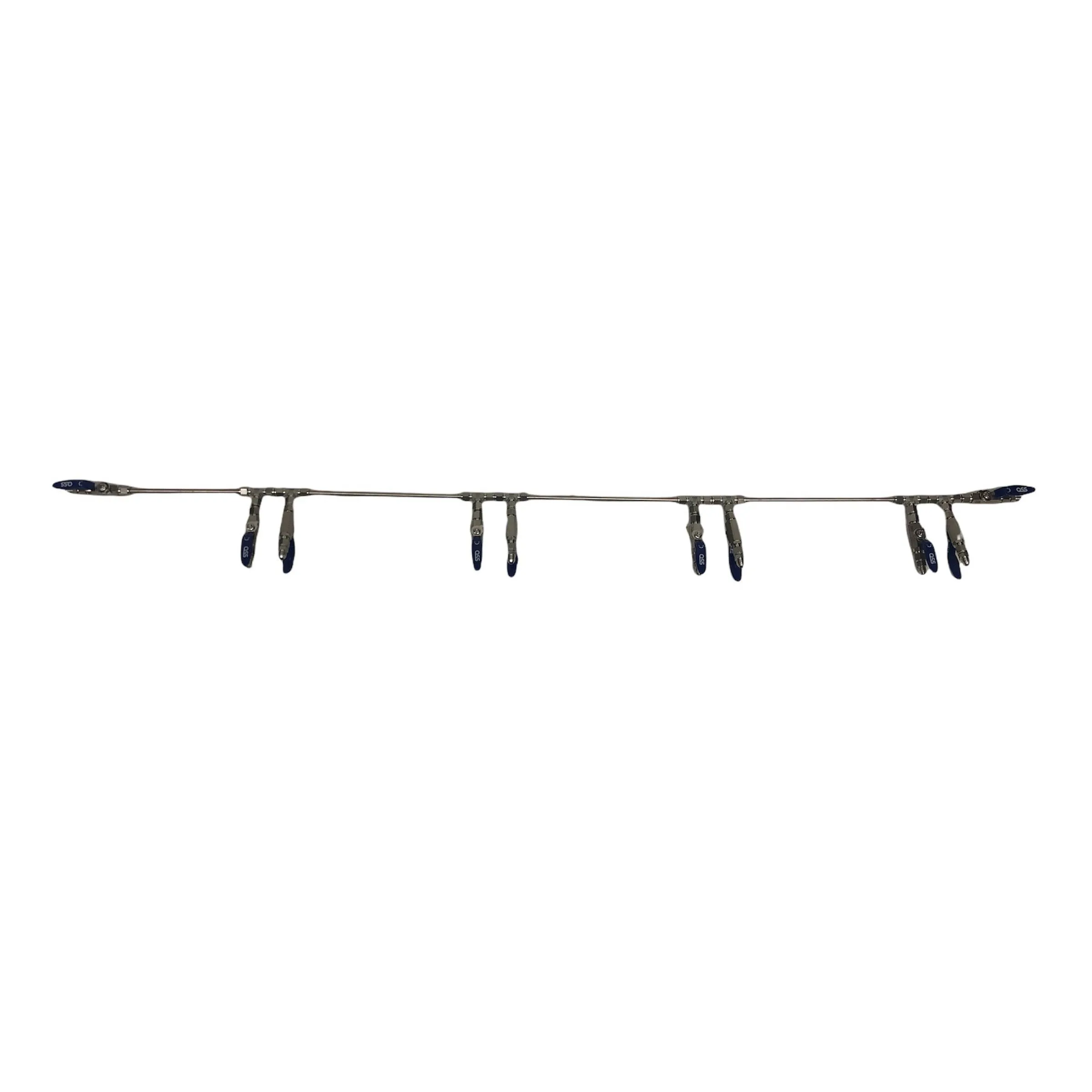

| Eight Column Manifold - Recovery | 67.5"x6.5"x2" |
*Sized for R4 Rack
| Options Available |

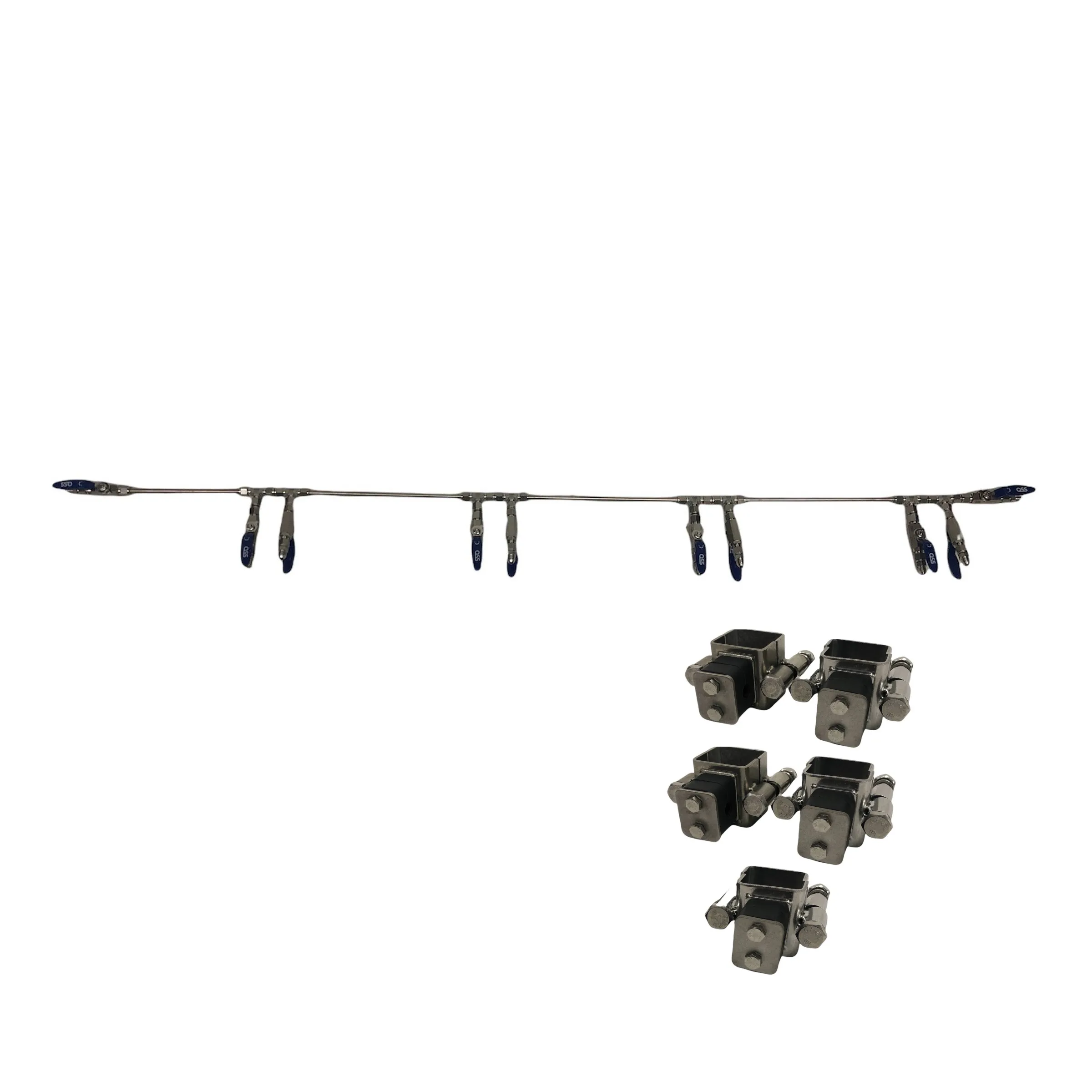

| Injection |
|
|
|
Recovery |
|
for R4 Rack |

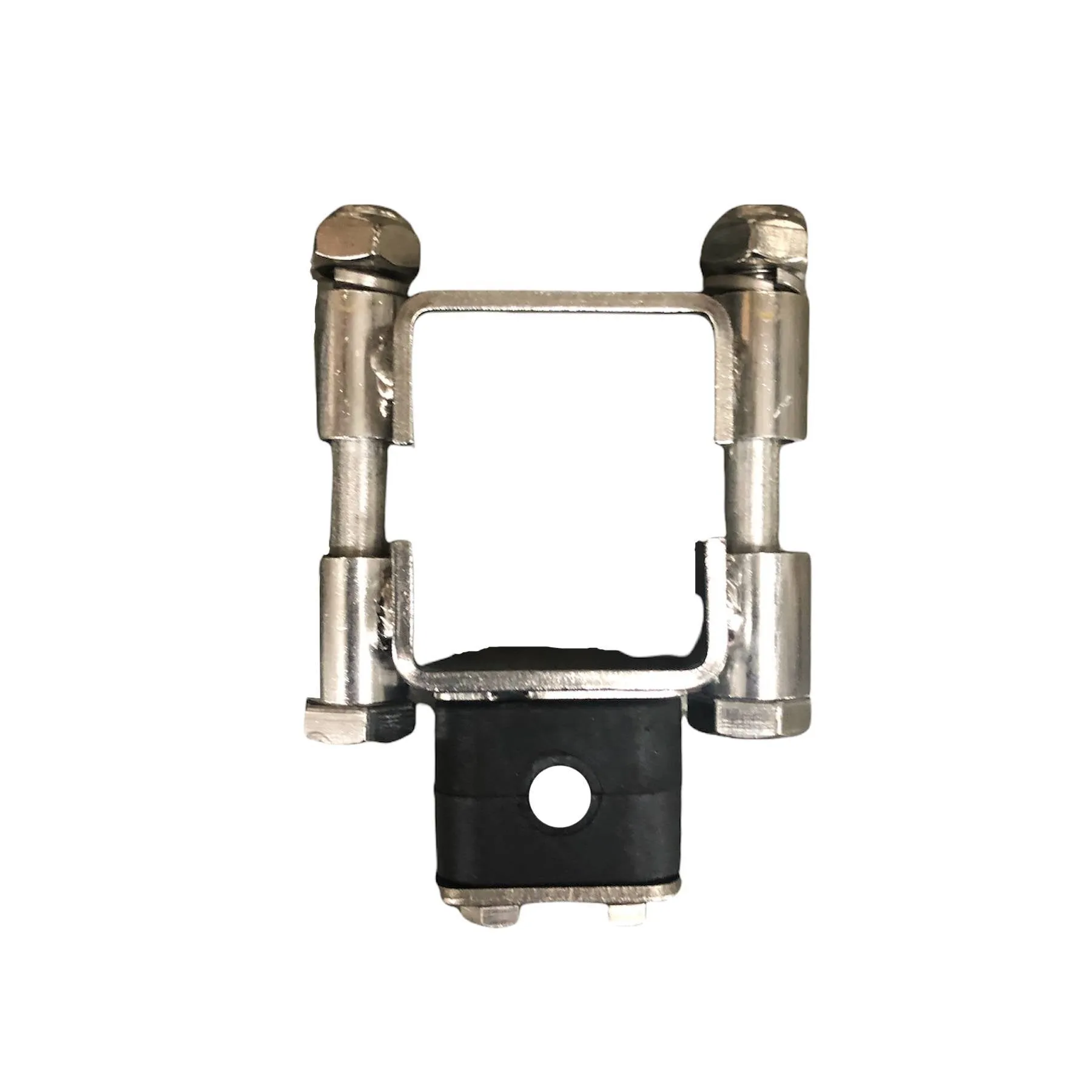

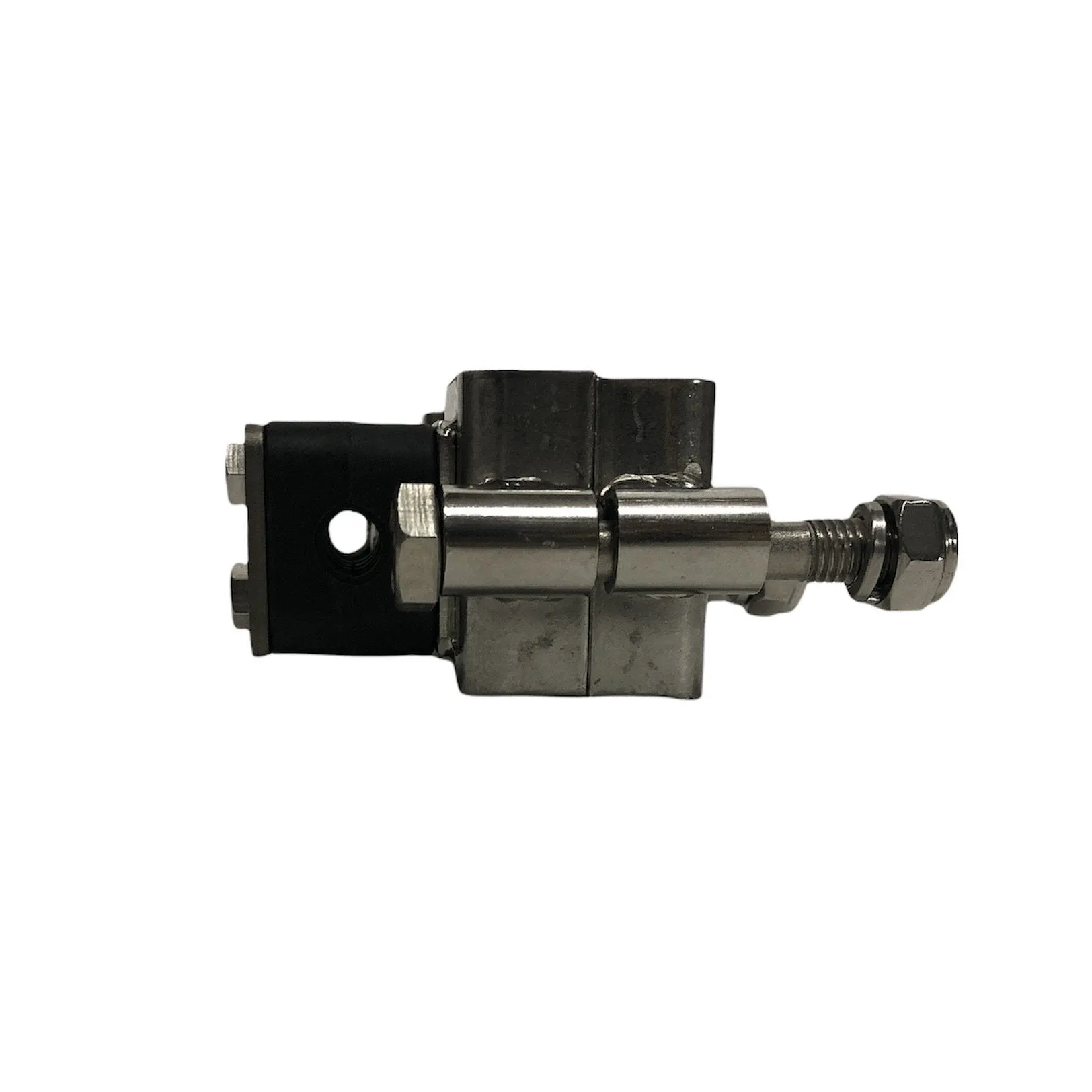

| No Clamps offered as an option if you're not using an R4 Rack. (Custom applications) |
